New Outdoor Weatherproof Wall Mount Impedance Matching Speaker Dial Volume Control Switch OVCDG Review
New Outdoor Weatherproof Wall Mount Impedance Matching Speaker Dial Volume Control Switch OVCDG Feature
- One Brand New Weatherproof Impedance Matching Dial Volume Control
- Independent Grounds For Use With Any Amplifier
- Can Be Used With 4ohm, 8ohm, and 16ohm Speakers
- Inputs & Outputs Accept Up To 14 Gauge Wire
- 150 Watts RMS Per Channel
Specifications
One Brand New Weatherproof Impedance Matching Dial Volume Control
150 Watts RMS Per Channel
Inputs & Outputs Accept Up To 14 Gauge Wire
Can Be Used With 4ohm, 8ohm, and 16ohm Speakers
Independent Grounds For Use With Any Amplifier
Housing Dimensions are 2.75" x 4.5" x 2.75"
1" Mount
Installation Manual Included
This Listing and Price is for 1 Outdoor Volume Control

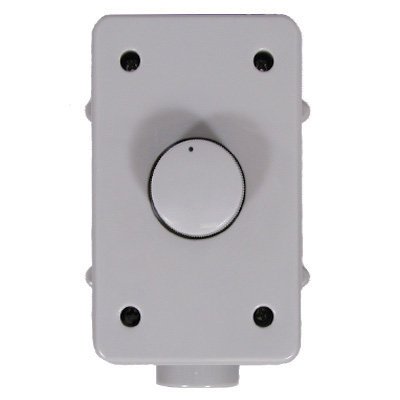

This weatherproof impedance matching dial volume control is a full range volume control that can be adjusted to meet the requirements of your installation. With a simple change of the placement of two shorting bars on the printed circuit board, you can safely connect up to 8 pairs of 8 ohm speakers to a single amplifier, receiver or selector box running at 8 ohm. Refer to the charts provided in the included installation manual to determine how to set the shorting bars to ensure the proper impedance matches the level being produced from your amplifier, receiver or selector box. This dial volume control can be used with any combination of 4ohm, 8ohm or 16ohm speakers by adjusting the shorting bars to the appropriate terminal setting. The dial has 12 steps of attenuation: first position is "off", steps 2 through 7 at 3db each, steps 8 through 11 at 6db each and the final position allows the signal from the amplifier, receiver or selector box to pass through completely. The volume control is completely protected in the weatherproof PVC housing. The housing has a 1" mount on the bottom for attaching a 1" PVC wire pipe.
